Threaded Insert Riveter

Popularity : 354

Introduction of the Rivet Nut

Rivet nut, also known as blind rivet nut or rivnut, is a screw nut that can be used for riveting.


The structure can be divided into three parts, which are the thread zone, deformation area and Flange nut unit. It is noticeably that the Flange nuts sometimes are called heads, nut ears or front lips. Within the assembly, the deformation area will swell and transformed into an annular structure. Eventually, the objects will be clamped together tightly with the annular structure and the Flange nut unit and be fixed permanently. The feature of single direction application has outstanding merits than regular screw nuts in many aspects, not only can be considered as the enforcement of the thread, but also can be regarded as a rivet that can fix two objects together.

Usage

The rivnut is suitable for riveting all kinds of metal sheets and pipes that are used in manufacturing industries. It is widely being utilized in automobiles, aviation, railways, refrigeration, elevators, switches, equipment, furniture, decorations, electromechanical and light industries.


It was invented to resolve the issues that often appear when welding thin metal sheets and thin wall pipes, such as screw nuts is fusible and the internal thread is too easy to be stripped. It is really convenient that rivet nuts can rivet without tapping the internal thread and welding the nuts, and the outcome is sturdy and efficiently.

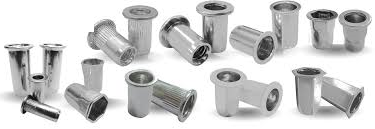

Rivet nuts

How to Use a Threaded Insert Riveter?

1 2 3 4 5
Threaded insert rivet operating step-1 Threaded insert rivet operating step-2 Threaded insert rivet operating step-3 Threaded insert rivet operating step-4 Threaded insert rivet operating step-5
Place the rivnut onto the object. Lock the head of the riveter into the rivnut. Actuate the riveter to pull outward. Unload the riveter. Lock the target in.

KING TONY’s Products

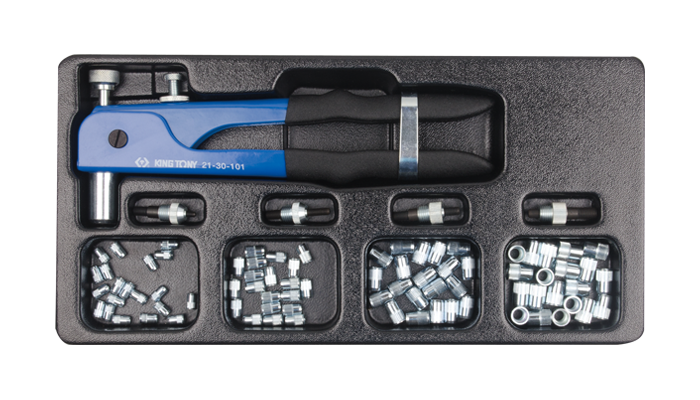

  • 85 PC. Blind Nut Riveter Set

    21-30-09MR

    85 PC. Blind Nut Riveter Set_21-30-09MR

    Capacity:

    M4, M5, M6 and M8.


    Feature:

    Suitable for narrow spaces and rivnuts in small sizes.

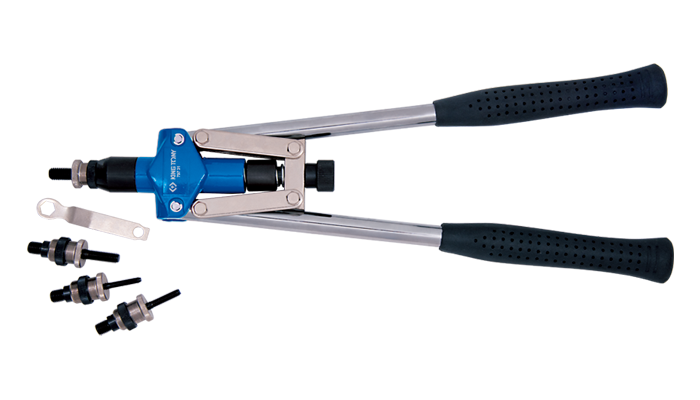

  • Stainless Steel Nut Riveter

    79731

    Stainless Steel Nut Riveter_79731

    Capacity:

    M5, M6, M8 and M10。


    Feature:

    Heavy duty riveter is suitable for spacious environment and rivnuts in large sizes.
