Does 600 g Matter? A Complete Guide to the 33461-100 Lightweight Air Impact Wrench
Popularity : 102A lightweight air impact wrench is designed for long hours of high-frequency fastening and removal work. In auto repair shops, tire service shops, heavy-duty vehicle maintenance, and assembly lines, an air impact wrench is a tool that technicians use almost every day. Technicians repeatedly remove and tighten nuts, move the tool around, and switch directions throughout the job. Each operation may take only a few seconds, but over a full workday, tool weight, grip comfort, and vibration can gradually add strain to the arms and shoulders. That is why a lightweight air impact wrench is not just easier to hold. It helps make long, repetitive work more stable, less tiring, and more efficient.
What are the benefits of a lightweight air impact wrench? Start with how an air impact wrench works
An air impact wrench uses compressed air to drive its internal impact mechanism, converting air power into rotary impact force for tightening or removing bolts and nuts. It is commonly used for tire service, automotive repair, heavy-duty equipment maintenance, and assembly line work. Compared with battery-powered tools, an air impact wrench does not require charging and is suitable for continuous use over long working periods. For high-frequency fastening and removal tasks, tool selection is not only about torque. Weight, grip comfort, forward and reverse control, output stability, and ease of maintenance all affect the real user experience on the job.
How can an air impact wrench be lighter? The key is the housing material
When choosing an air impact wrench, many users look at torque first. However, the housing material often has a greater impact on long-term comfort. Different materials affect tool weight, grip feel, corrosion resistance, heat insulation, and fatigue during extended use.
| Comparison Item | Aluminum Alloy Housing | Composite Housing |
|---|---|---|
| Weight | Heavier | Lighter |
| Grip Feel | More tiring during long use | More comfortable during long use |
| Corrosion Resistance | May oxidize | Less prone to rust |
| Heat Insulation | Conducts heat faster | Better heat insulation |
| Suitable Applications | General repair work | Long-hour, high-frequency continuous work |
As the table shows, lightweight design is not simply about making the tool smaller. It is about using the right material to reduce strain on the hands, arms, and shoulders during long periods of operation. For auto repair shops, tire service shops, and assembly lines, this difference becomes more noticeable through repeated daily use.
However, material is only one part of the user experience. In real working conditions, users also care about whether the tool is easy to grip, whether direction changes are quick, whether torque output remains stable, and whether the tool stays comfortable during extended use. This is why lightweight design delivers its true value only when it is combined with operating convenience and stable performance. Taking the KING TONY 33461-100 as an example, it uses a lightweight composite housing while also supporting one-handed operation, forward and reverse control, air regulation, vibration-reducing grip comfort, and improved working efficiency.
What makes the lightweight design of the KING TONY 33461-100 effective?
The KING TONY 33461-100 is a 1/2" DR. lightweight one-hand forward/reverse air impact wrench, suitable for automotive repair, tire service, heavy-duty vehicle maintenance, and high-frequency fastening and removal work. Its design is not only about reducing weight. With a lightweight composite housing, a TPR ergonomic grip, a new twin hammer impact mechanism, 3 forward air settings, and full-power reverse, it helps make long working hours less tiring, more stable, and smoother to handle. Its key features can be summarized in three points: TPR ergonomic grip for reduced vibration, one-hand forward/reverse switching with 3 forward settings and full-power reverse, and a lightweight design that is 17% lighter than the KING TONY 33411-050.
1. TPR ergonomic grip with new twin hammer impact mechanism
The TPR ergonomic grip helps reduce vibration transfer and improves grip comfort and stability during extended use. The new twin hammer impact mechanism delivers stable impact force, making tightening and removal work more efficient while supporting long-term durability.
2. One-hand F/R switch: 3 forward settings + full-power reverse
Forward, reverse, and air regulation can be adjusted quickly, making the tool suitable for work environments where fast, repeated fastening and removal are required. For tightening, users can choose from 3 forward air settings according to the task. For removal, full-power reverse helps loosen bolts more efficiently.
3. Lightweight design, 17% lighter than KING TONY 33411-050
The tool is 17% lighter than the KING TONY 33411-050, helping reduce the burden of long periods of handling. When technicians need to frequently adjust angles around tires, chassis areas, vehicle bodies, or tight spaces, the lighter housing makes the tool easier to maneuver and helps maintain better control.

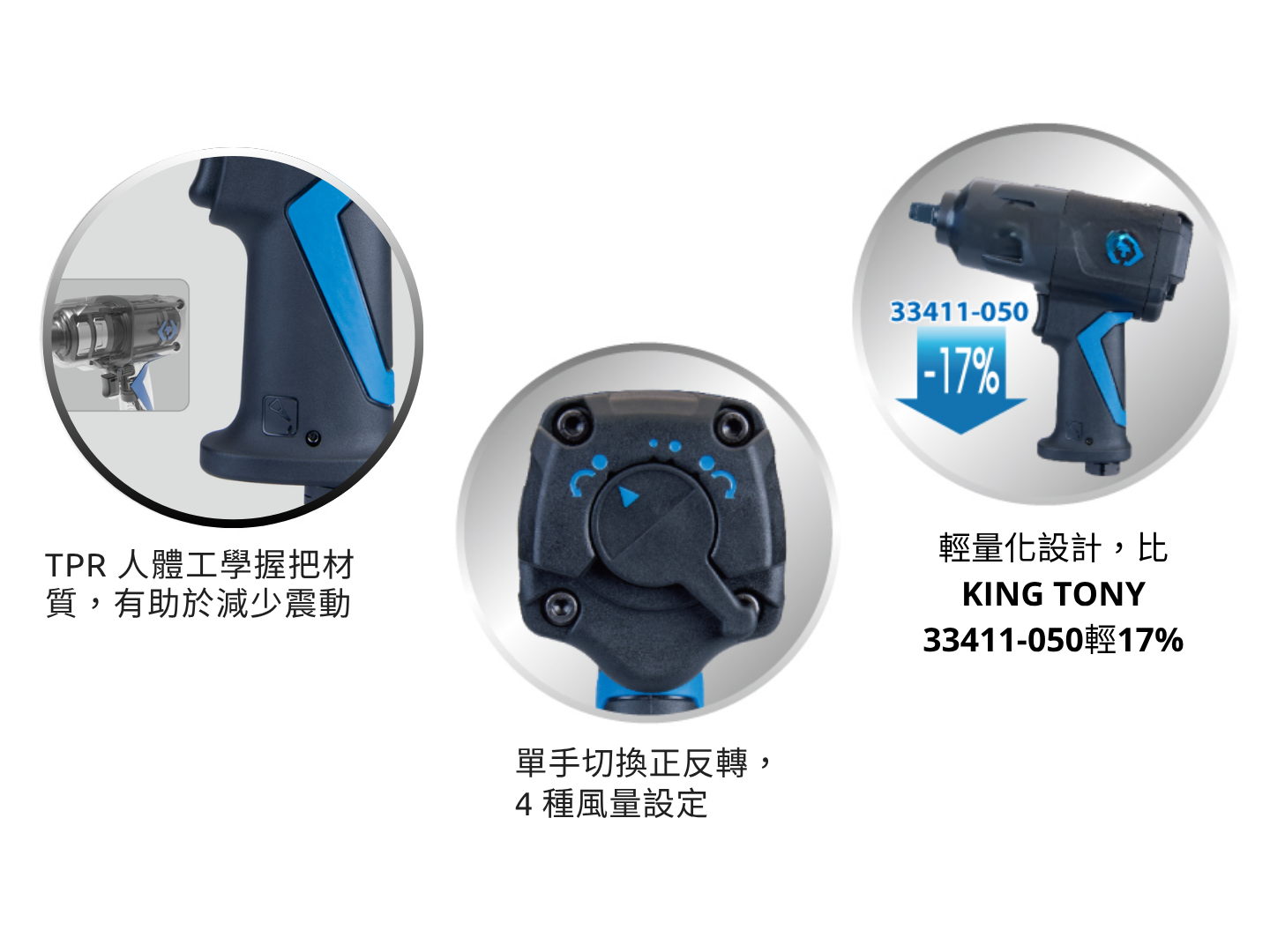

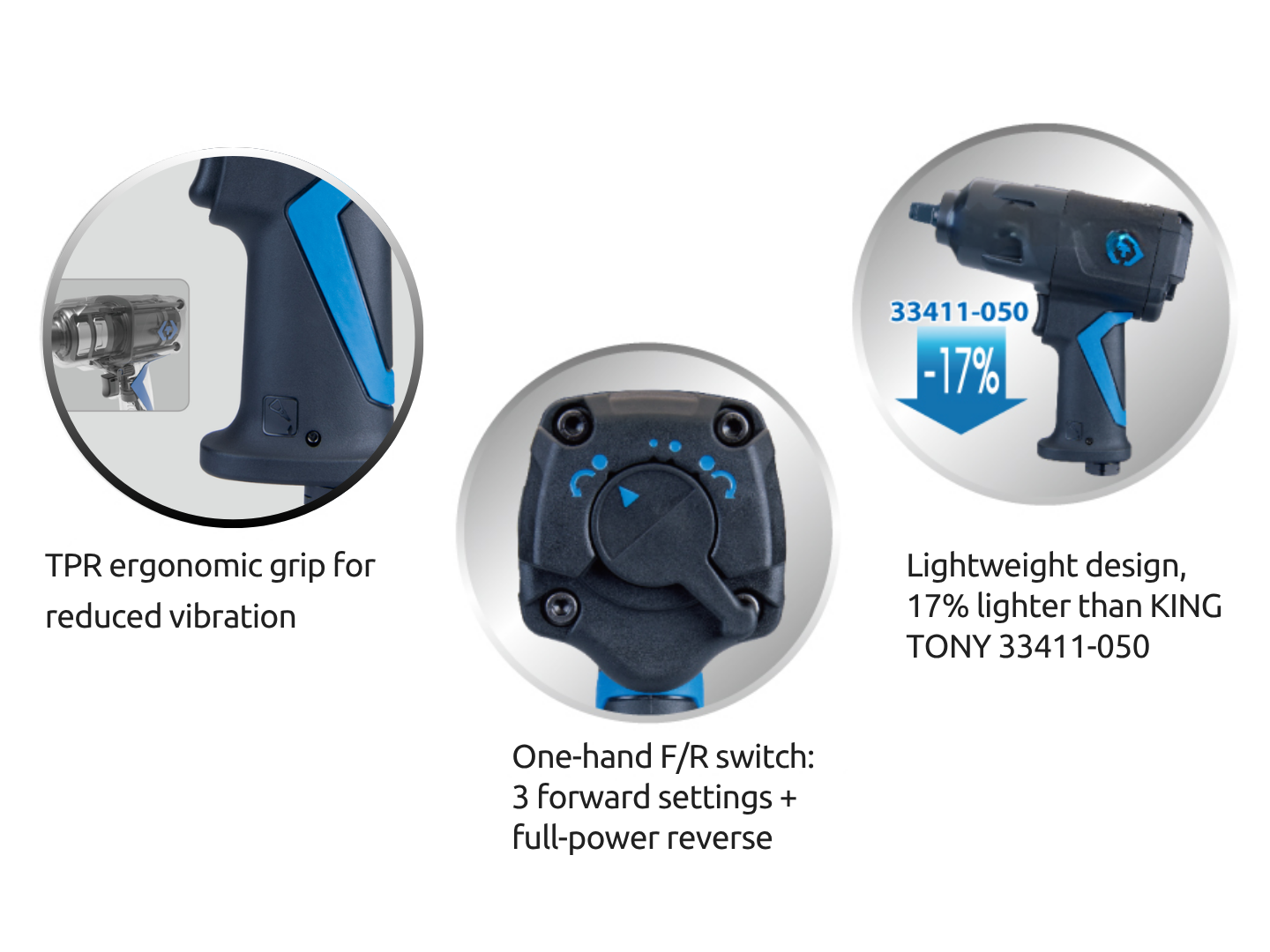

Three key features of the 33461-100 lightweight air impact wrench
Before using an air impact wrench: key checks and operation tips
Stable output from an air impact wrench depends heavily on proper preparation before use. Before operating the tool, check three key areas: the compressed air system, pre-use inspection, and correct operation. The air supply setup affects tool output and stability. Pre-use checks help reduce the risk of malfunction and wear. Correct operating steps help improve efficiency and prevent misuse. The following are the 3 most important points to confirm before using an air impact wrench.
1. Is the compressed air system set up correctly?
The performance of an air tool depends largely on whether the air supply system is properly configured. A standard compressed air system can be understood as: air compressor → air tank → air dryer → filter, regulator, lubricator → air hose → air tool. A shut-off valve, water drain, and proper pipe diameter and hose length are also important parts of a reliable air supply setup. If air pressure is too low, torque may drop. If there is moisture in the line, excessive water content in the air, or insufficient lubrication, internal components may wear more quickly. Before use, checking air pressure, moisture, lubrication, pipe diameter, and hose length is essential for maintaining stable output and extending tool life.

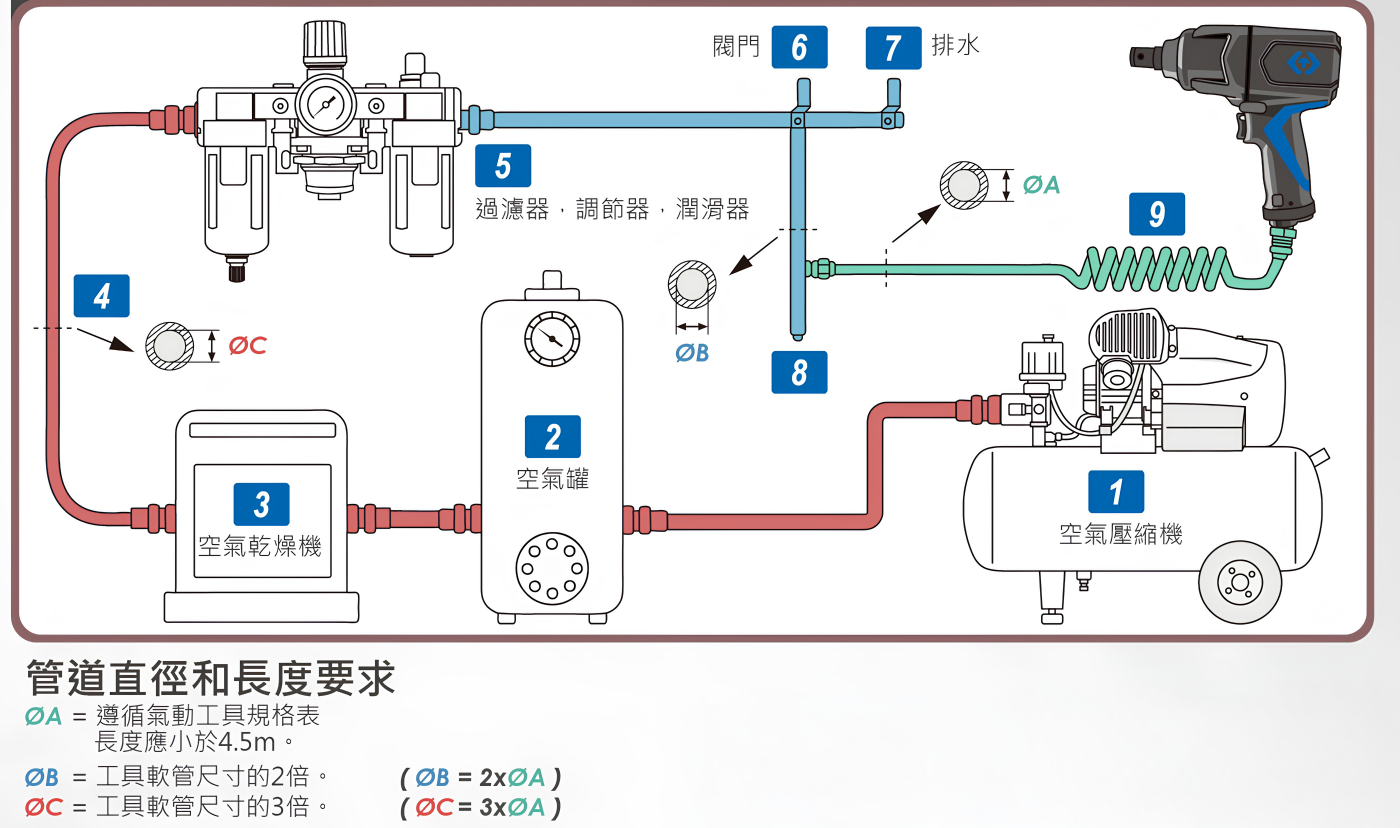

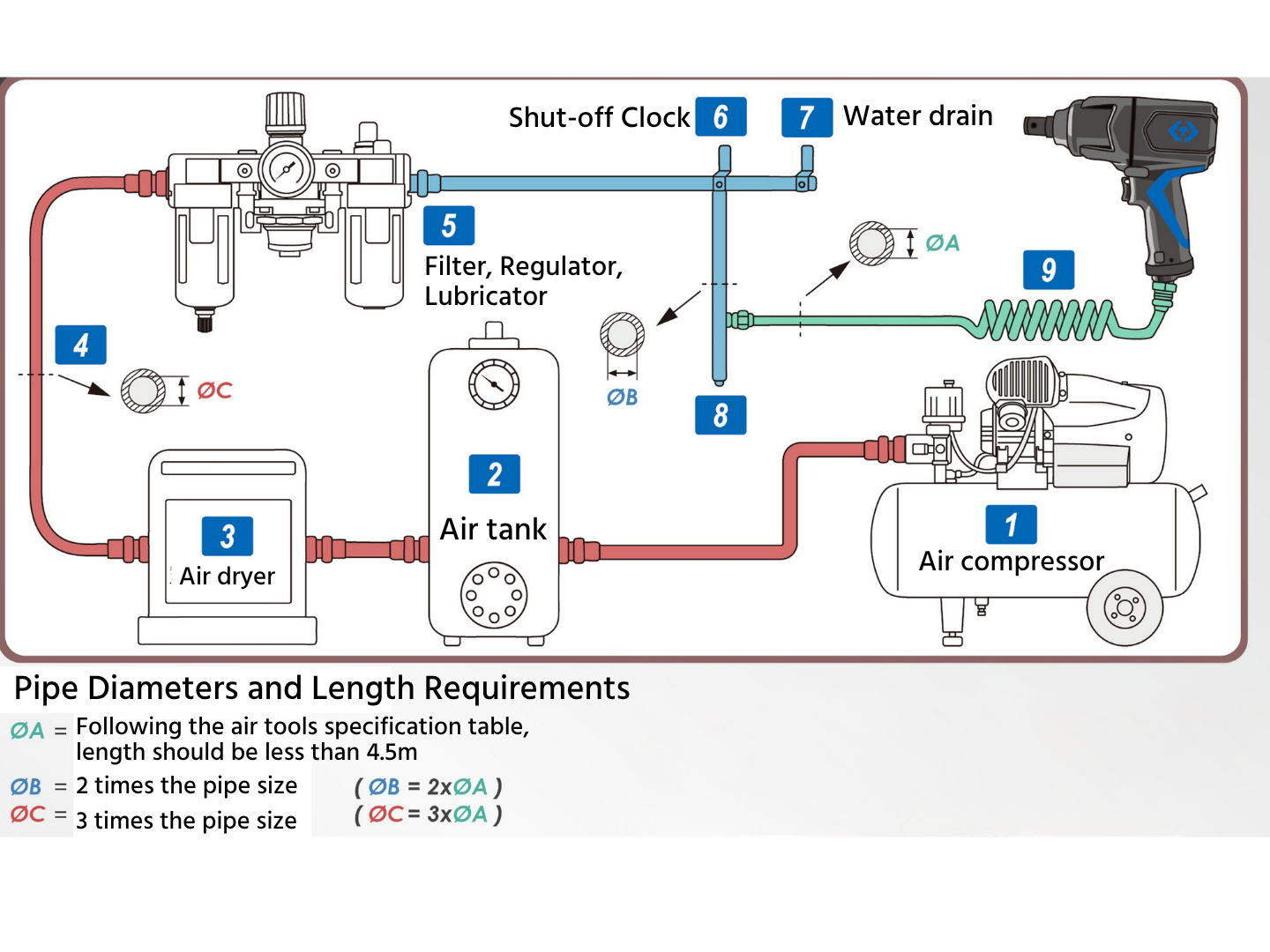

Compressed air supply system diagram
2. Pre-use inspection
To keep the air impact wrench operating with stable output and to reduce wear and operating risks, complete the following checks before use:
1. Set the air pressure to 90 PSI／6.2 bar
2. Drain the water from the air tank and air lines
3. Clean the air hose before connection
4. Use SAE #10 oil for pneumatic tools
5. Use impact sockets only. Do not use regular hand sockets
6. Hold the tool properly and keep a stable grip before operation

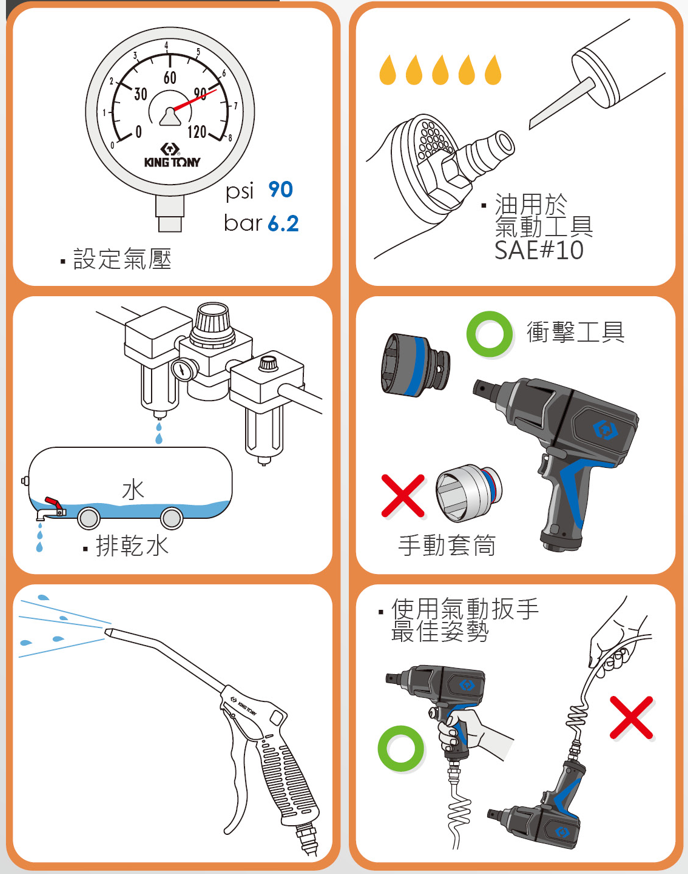

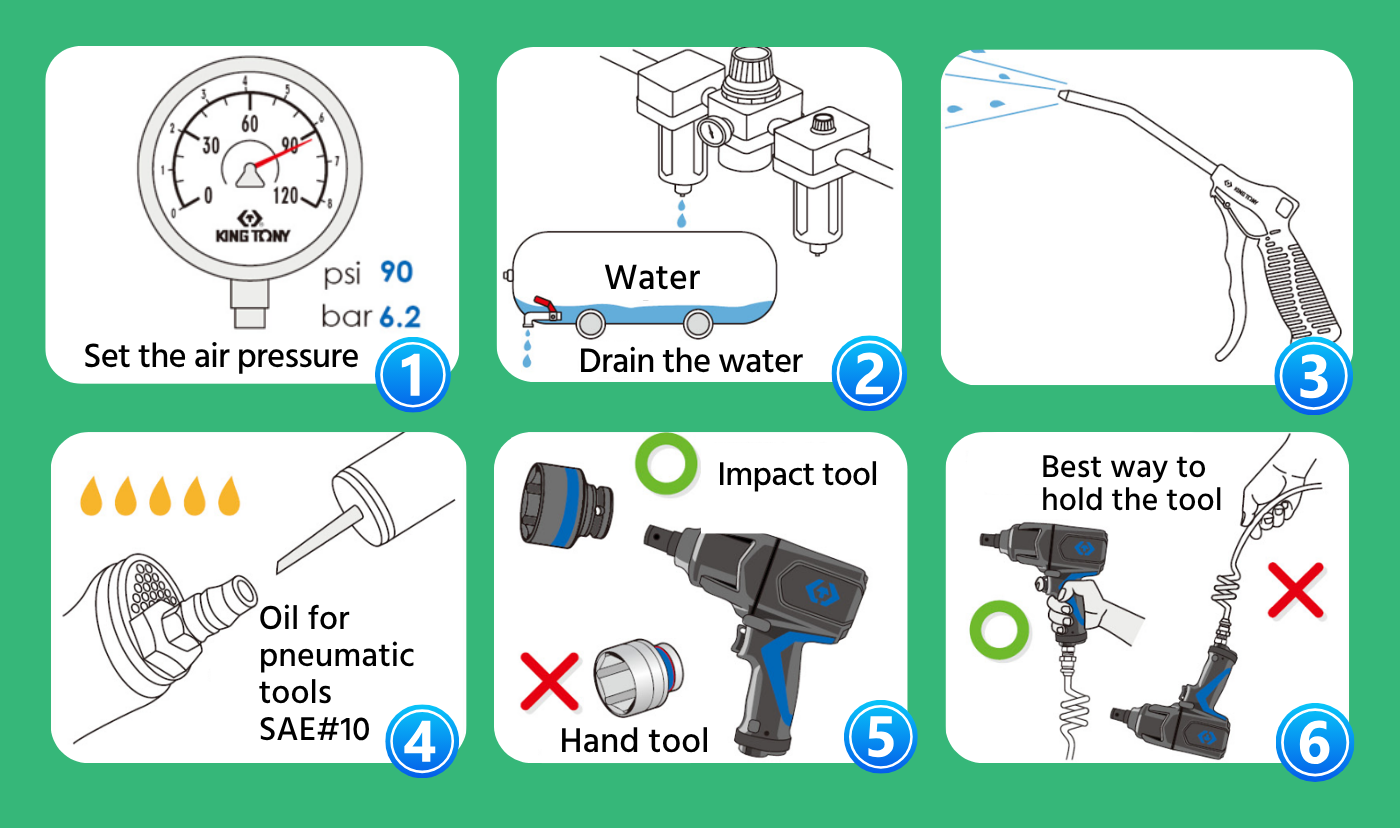

Six pre-use inspection steps

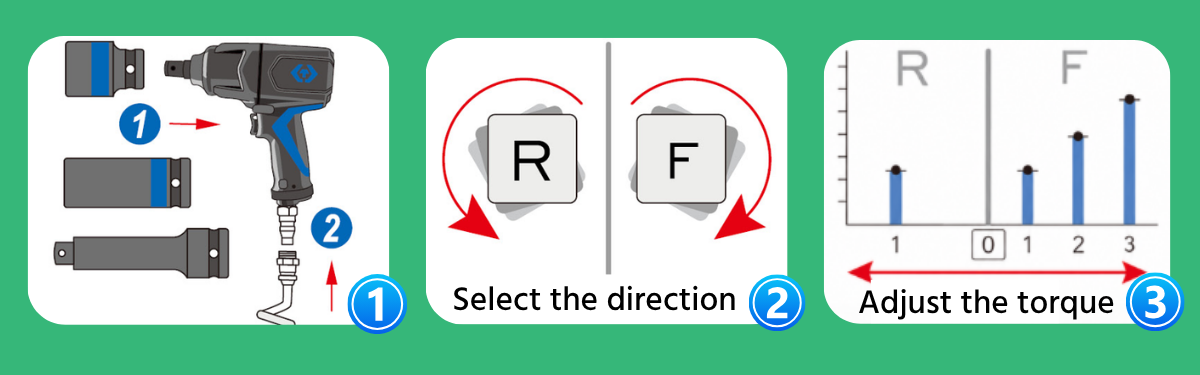

3. Three basic operating steps
Install the socket → Select the direction → Adjust the torque
Before use, attach the impact socket securely to the 1/2" square drive, then switch to forward or reverse according to the job. When tightening, start from a lower forward air setting to avoid excessive tightening at the beginning. When removing bolts, use full-power reverse output to improve working efficiency.
⚠️ Reminder: Do not use regular hand sockets. Air impact wrenches should be used with impact sockets to help prevent socket breakage caused by high impact force, which may damage the tool or cause injury.

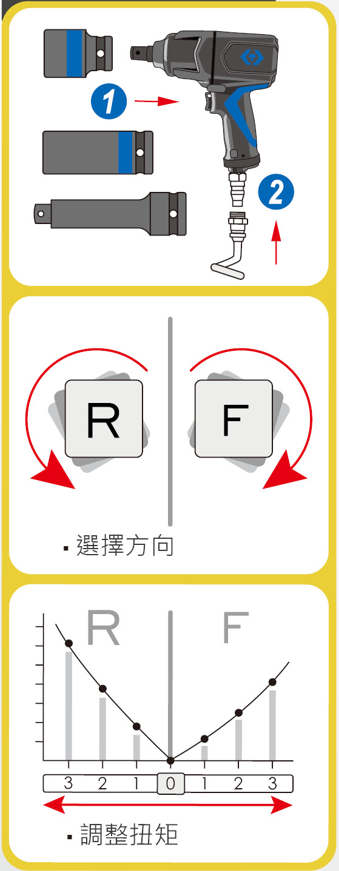

Three-step operation guide for air impact wrenches
How to maintain an air impact wrench after work: three key principles
After a full day of heavy-duty work, an air impact wrench also needs proper maintenance. Good daily maintenance helps reduce internal wear, lower the risk of malfunction, and maintain stable output, helping the tool last longer:
1. Lubricate after use
After each use, add a few drops of air tool oil into the air inlet. This allows lubrication to enter the internal mechanism, helping reduce component wear and extend tool life.
2. Store in a dry environment
Avoid moisture that may cause rust, oxidation, or dampness inside the tool. Store the air impact wrench in a dry, ventilated place where it is protected from unnecessary impact.
3. Dispose of end-of-life tools properly
When the tool can no longer be repaired or has reached the end of its service life, dispose of it according to local recycling and waste regulations. This helps avoid improper disposal and reduces environmental impact.

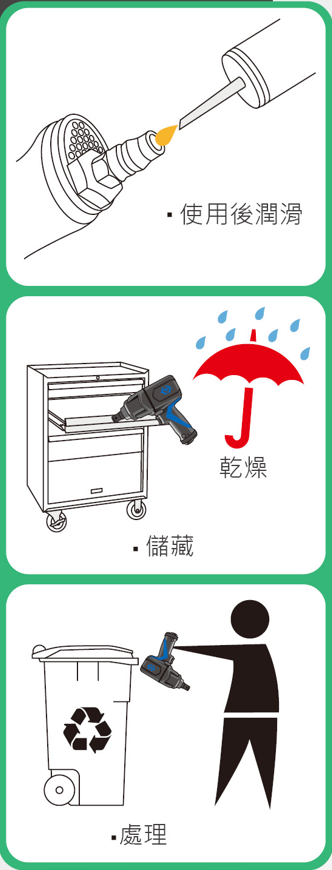

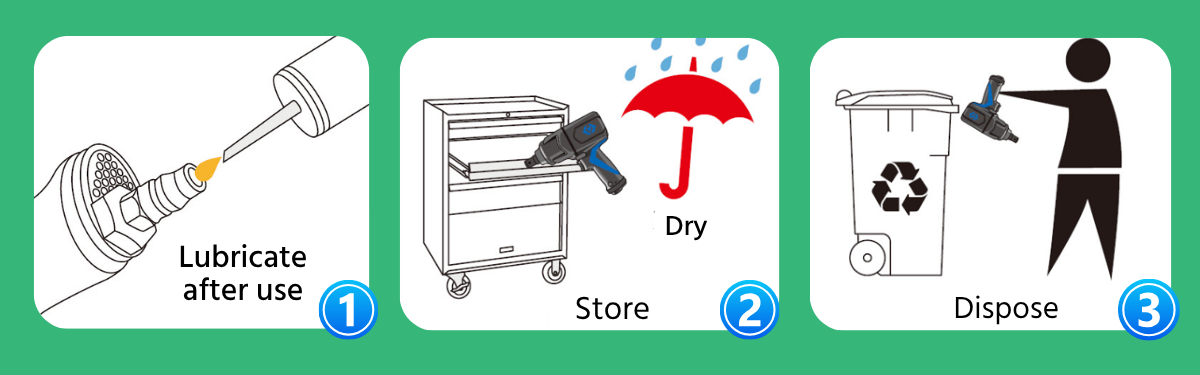

Three maintenance steps for air impact wrenches
Conclusion: lightweight design makes heavy-duty work easier to handle
For auto repair shops, tire service, heavy-duty vehicle maintenance, and assembly line work, an air impact wrench needs more than power. It also needs to support stable operation over long working hours. With its lightweight composite housing, one-hand forward/reverse switching, 3 forward air settings, full-power reverse, TPR ergonomic grip, and new twin hammer impact mechanism, the KING TONY 33461-100 makes each fastening and removal task less tiring, more stable, and better suited for high-frequency work. Lightweight design is not a gimmick. It is a practical design that helps professional technicians maintain efficiency and comfort during demanding work. Enjoy Your Work.
